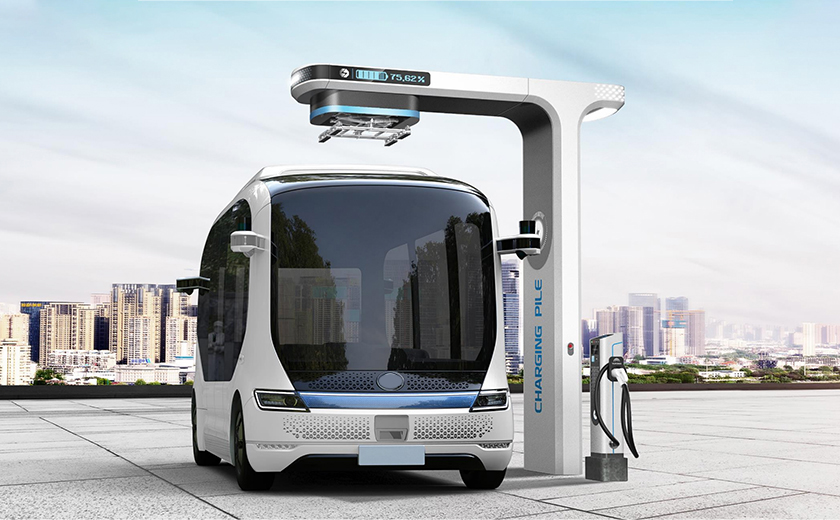

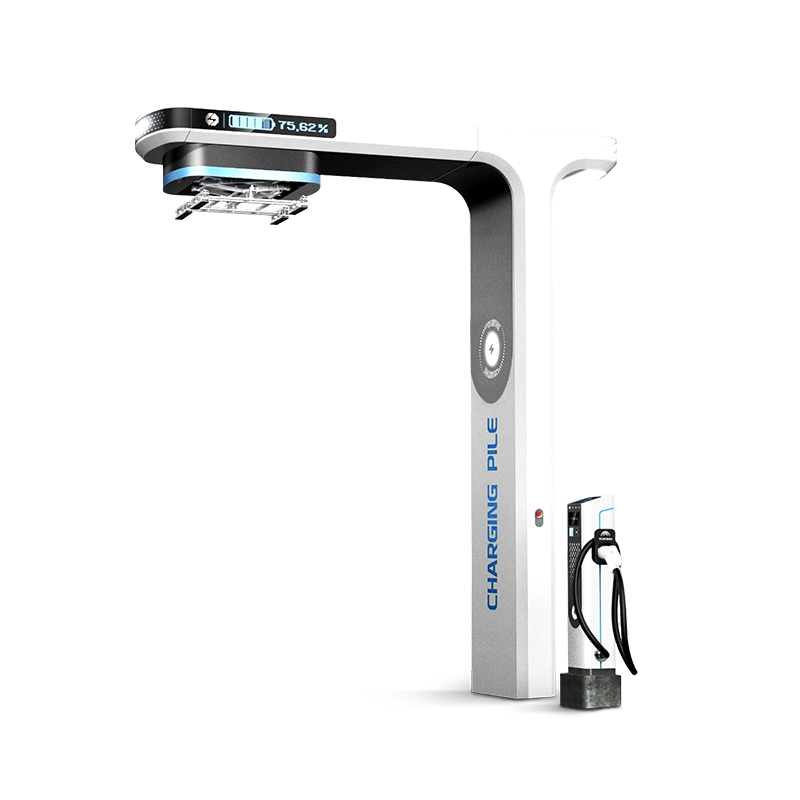

Automatic charging system for micro mobility
Automatic charging system for micro mobility
Output Power:120kW-160kW
Application Scenario:Bus depot and public operation station.
Product advantages:Extremely fast charging, fully automatic, easier operation.
Product Features
The proprietary automatic charging system features fast charging, good safety and high intelligence.
-
Forward-looking Design, Intelligent “Fast-charging”
Extremely Fast Charging:Express charging at 1000A, more than 3 times faster than that of the charging gun;
Fully Automatic:One-button operation for automatic charging with vehicular tolerance ±22cm;
High Safety:HV components need no manual operation, and the robust skeleton structure can withstand 12-magnitude typhoon.
-

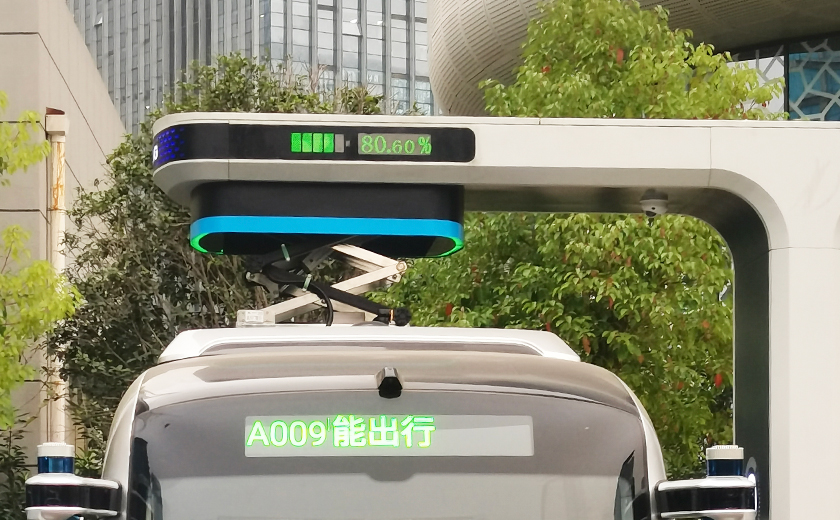

Automatic charging for easy work
One-button:charging The charging will be done with one button! No more need to dragdirty and heavy charging guns;
Automatic charging for easy work:The 36-degree view helps guide the vehicle in real time to park accurately. After stop, the driver only needs to press one button to, which is safe and convenient;
"Three-dimensional and two-layer" charging safety protection system:From remote protection and local protection of automatic charging system, the leading "three-dimensional and two-layer" protection system ensures extreme safety.
Specifications
| Overhead automatic charging system | Overhead automatic charging system | |
|---|---|---|
| Rated output power | 120kW/160kW | 360kW/420kW/600kW |
| Input voltage | 380V士15% | |
| Output current | 200 ～ 750V | 150 ～ 1000V |
| Output current | Max. 600A | Max. 1000A |
| Start method | One-button docking and automatic charging | |
| Automatic docking time | ＜10s | |
| Allowable deviation of docking | ±100mm | ±200mm |
| Interface temperature control | Temperature rise＜80K | |
| Operating temperature | -30 ～ 55°C | |
