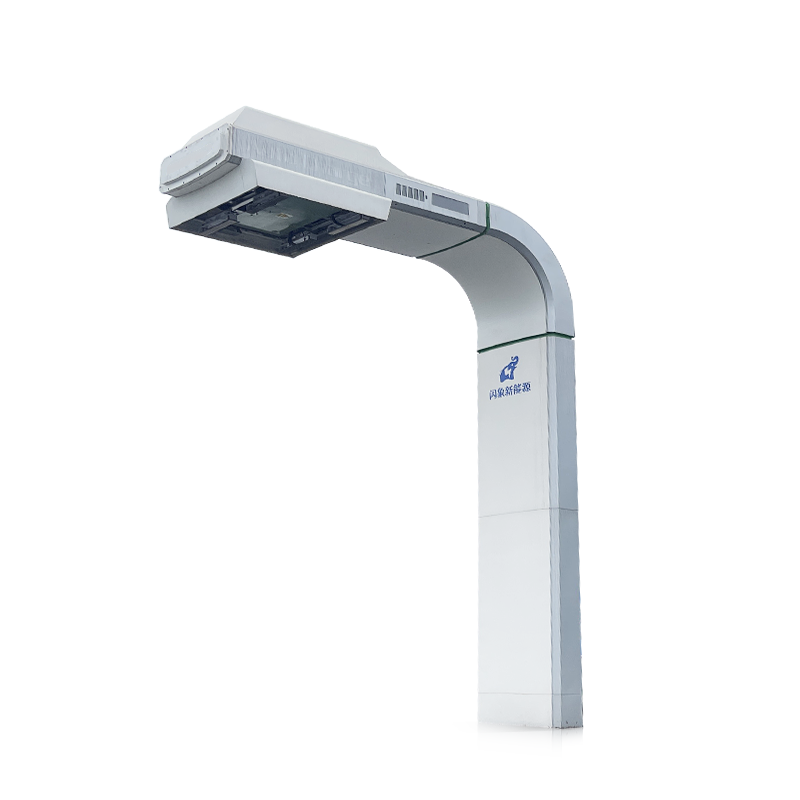

High power automatic charging system
High power automatic charging system
Output Power:360kW-600kW

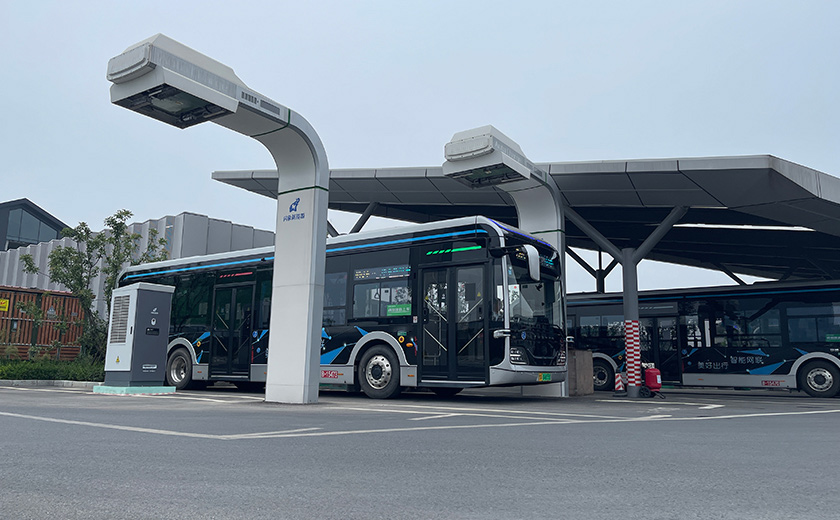

Application Scenario:Bus Depot & Public Operation Station.
Product advantages:The automatic docking can be completed in 10 seconds after the vehicle is parked in the charging parking space, and the driving range can be increased by 100 kilometers after 15-minute charging, and 100% SOC can be reached within 1 hour.
Product Features
The proprietary automatic charging system features fast charging, good safety and high intelligence.
-
Forward-looking Design, Intelligent “Fast-charging”
Extremely Fast Charging:Express charging at 1000A, more than 3 times faster than that of the charging gun.
Fully Automatic:One-button operation for automatic charging with vehicular tolerance ±22cm.
High Safety:HV components need no manual operation, and the robust skeleton structure can withstand 12-magnitude typhoon.
-

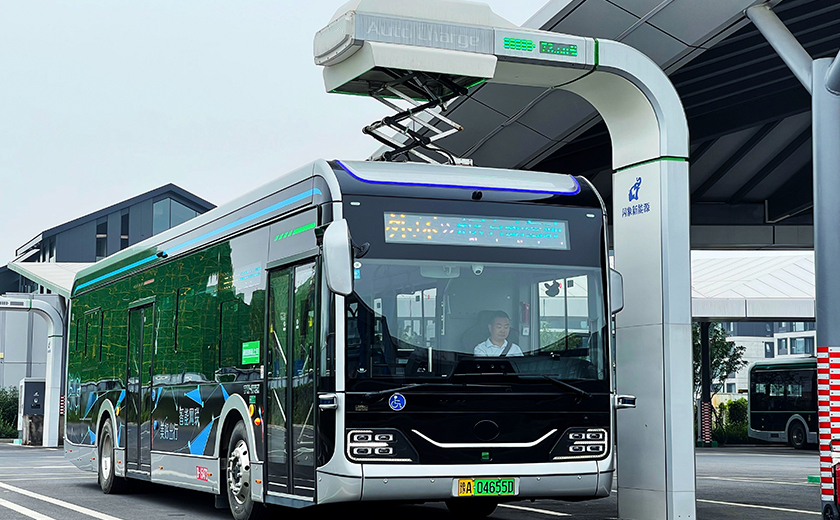

Automatic charging for easy work
One-button:charging The charging will be done with one button! No more need to dragdirty and heavy charging guns;
Automatic charging for easy work:The 36-degree view helps guide the vehicle in real time to park accurately. After stop, the driver only needs to press one button to, which is safe and convenient;
"Three-dimensional and two-layer" charging safety protection system:From remote protection and local protection of automatic charging system, the leading "three-dimensional and two-layer" protection system ensures extreme safety.
Specifications
| Overhead automatic charging system | Overhead automatic charging system | |
|---|---|---|
| Rated output power | 120kW/160kW | 360kW/420kW/600kW |
| Input voltage | 380V士15% | |
| Output current | 200 ～ 750V | 150 ～ 1000V |
| Output current | Max. 600A | Max. 1000A |
| Start method | One-button docking and automatic charging | |
| Automatic docking time | ＜10s | |
| Allowable deviation of docking | ±100mm | ±200mm |
| Interface temperature control | Temperature rise＜80K | |
| Operating temperature | -30 ～ 55°C | |
