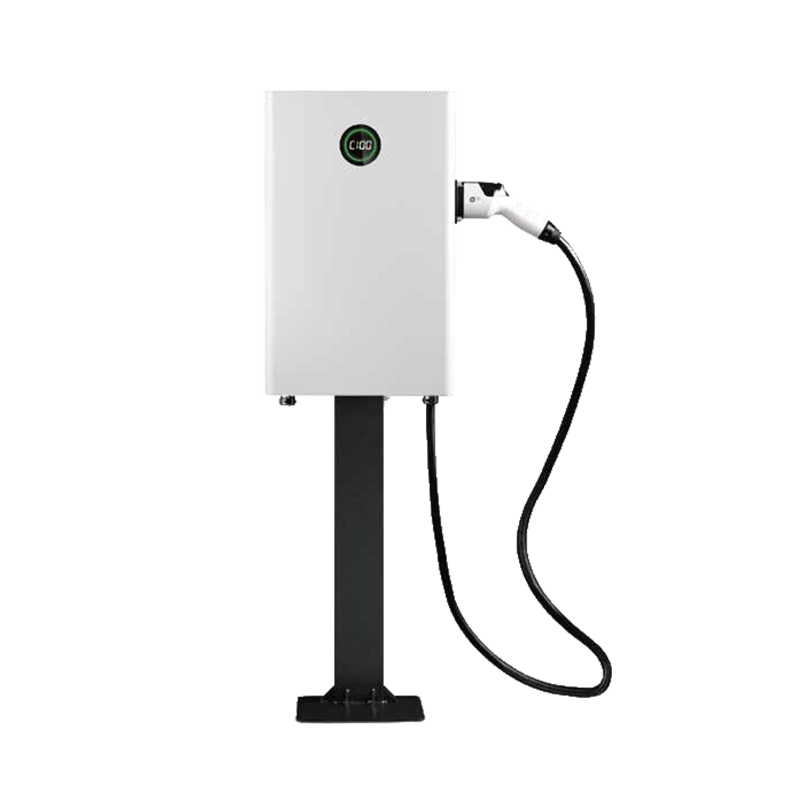

20kW Integrated DC Charger
20kW Integrated DC Charger
Output Power:20kW
Application Scenario:Car & Light truck.
Product advantages:Wide charging voltage range, small body and convenient installation (pile or wall-mounted installation supportable).
Specifications
| Basic electrical performance | AC input voltage | 323 ～ 437VAC；380VAC |
| AC input frequency | 45 ～ 55Hz；50Hz | |
| Output power | 0 ～ 20kW | |
| Output voltage | 200 ～ 750VDC | |
| Basic performance | Constant power range | 450 ～ 750VDC |
| Output current | 0 ～ 44.4A | |
| Power factor | 0.99（full load） | |
| Peak value efficiency | 93% | |
| Reference standard | GB/T 20234.1—2015、 GB/T 20234.3—2015、 GB/T 27930—2015、 GB/T 18487.1—2015、 NB/T33001—2018 | |
| Mechanical properties | Dimensions | 630mm*393mm*145mm |
| Package size | 834mm*488mm*375mm | |
| Weight | 33kg | |
| Length of gun cable | 5 m | |
| Input cablelength | Non-standard | |
| Functional features | Access method | Three-phase four-wire |
| Smart control | Bluetooth upgrade, intelligent anti-theft, scheduled charging, one-button start-stop | |
| Protection design | Protections against overvoltage,under-voltage, overload, short circuit, grounding, over-temperature, low temperature and lightning, and double insulation for electric shock | |
| Communication interface | Bluetooth or 4G | |
| Noise | Less than 65dB | |
| Cooling mode | Forced air cooling | |
| Operating environment | IP grade | IP54 |
| Working temperature | -30 ～ 50℃（intelligent protection against over-temperature） | |
| Relative humidity | 5% ～ 95% | |
| Altitude | 2000m | |
| Atmospheric pressure | 70 ～ 106KPa | |
| Applicable environment | Large shopping malls, office buildings, residential quarters and other ground and underground parking lots |
